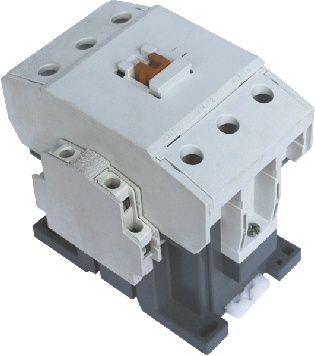

WLC AC Contactor |
|
| Product name : WLC AC Contactor |
| Item : WLC1-50/85 |
| Details : |
Three/Four Pole AC Contactors
Item: WLC1-50/85
Description: Ac contactor with 2 Aux. contact unit
Rated current: 50A 65A 75A 85A
Poles: 3P 4P
Coil Voltage: 24V—600V (50Hz/60Hz)
Aux. contacts:2NO+2NC 4NO 4NC 3NO+1NC 1NO+3NC
Thermal relay matched: WLH-85
Certificate: UL CE
|
Rated
current
|
AC3(IEC60947)
|
AC1 lth
|
Aux. contacts
|
Type
|
|
220V-240V
|
380V-440V
|
500-550V
|
690V
|
|
50A
|
15KW
55A
|
22KW
50A
|
30KW
43A
|
30KW
28A
|
80A
|
2NO+2NC
|
WLC1-50
|
|
65A
|
18.5KW
65A
|
30KW
65A
|
33KW
60A
|
33KW
35A
|
100A
|
2NO+2NC
|
WLC1-65
|
|
75A
|
22KW
75A
|
37KW
75A
|
37KW
64A
|
37KW
42A
|
110A
|
2NO+2NC
|
WLC1-75
|
|
85A
|
25KW
85A
|
45KW
85A
|
45KW
75A
|
45KW
45A
|
135A
|
2NO+2NC
|
WLC1-85
|
Voltage of AC Coil
50Hz: 24 42 48 100 110 220 240 380 400 415 440 500 550V
60Hz: 24 48 110 120 208 240 277 380 440 480 600V |
 |
